83526 COTS Cables

SKU: MPTC004-TFTF-SM-D-xxx

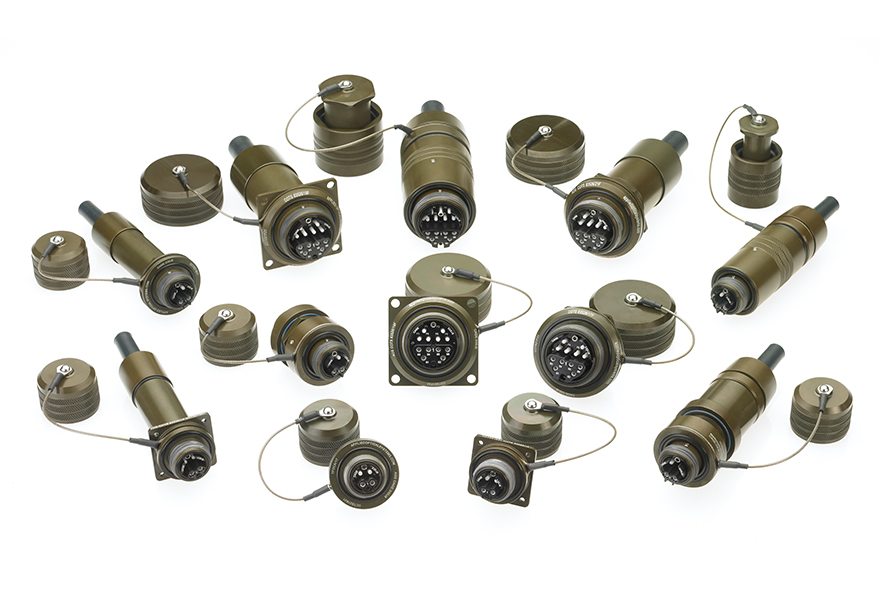

MIL-DTL-83526/16 plugs and /17 receptacles (4 - 12 channel) for Harsh Environment and Military Ground Tactical applications. This high performance tactical/deployable connector system is designed to the latest MIL-DTL-83526/16 & /17 specifications.

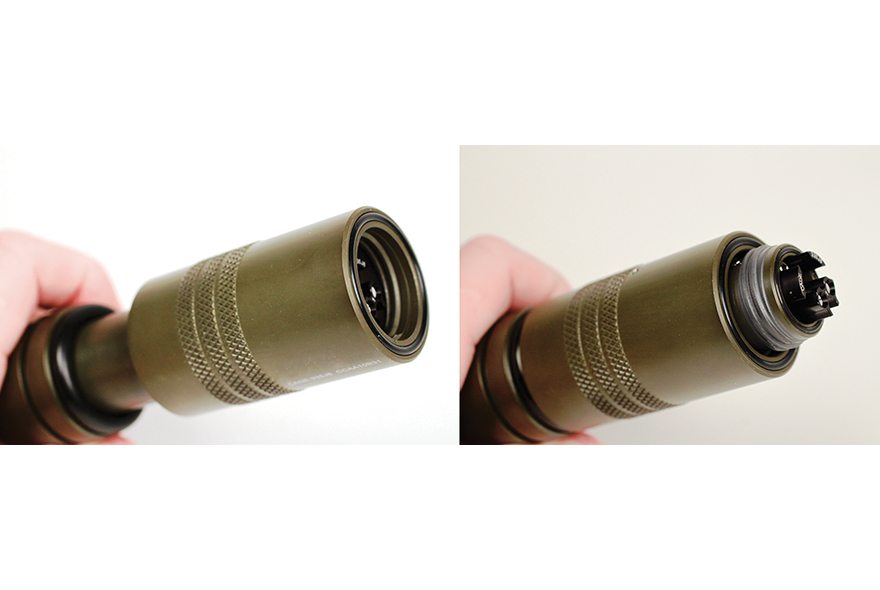

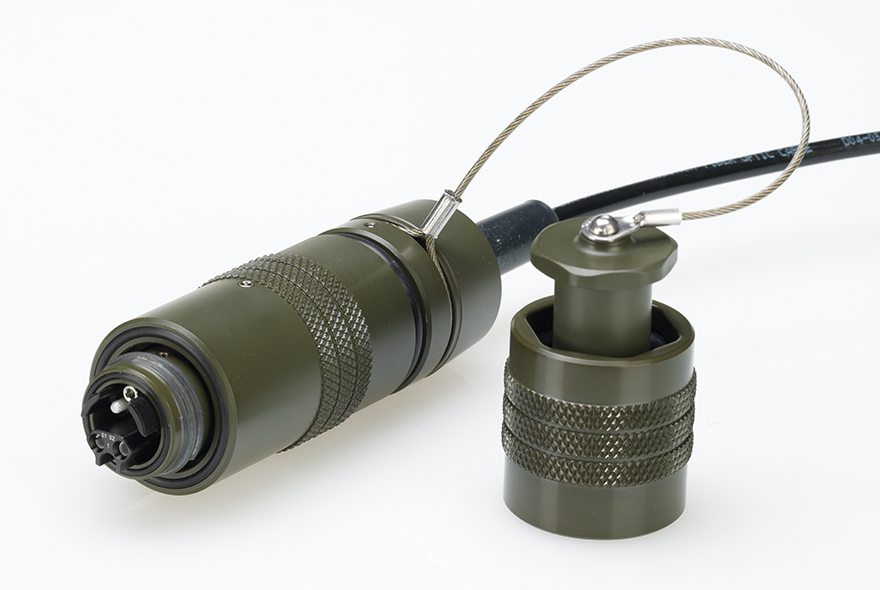

Fibre Systems offer MIL-DTL-83526/16 plugs and /17 receptacles (4 – 12 channel) for Harsh Environment and Military Ground Tactical applications. This high performance tactical/deployable connector system is designed to the latest MIL-DTL-83526/16 & /17 specifications, and is inter-matable and inter-changeable with the Amphenol Fiber Systems International (AFSI) M83526 style connectors. Plug-to-plug (MIL-DTL-83526/16) assemblies are available in configurations of 2 and 4 channels, fabricated with 2 or 4 fibre military tactical cable. Receptacle assemblies are available in Jam Nut (MIL-DTL-83526/17) or Flange Mount (MIL-DTL-82526/18) configurations and provide for choice of MIL ST, COTS ST, SC, FC, LC or MT-RJ pigtails. Standard plug configurations include hermaphroditic dust caps and receptacle configurations include female dust caps.
