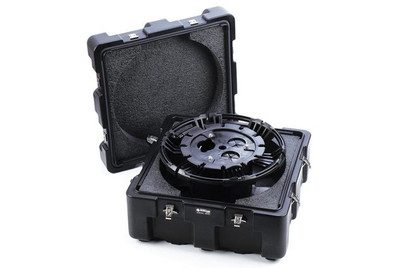

RIO Series MARS Reel c/w Integrated Fibre Optic Panel – 500 Metre

LEMO’s range of panel-mount SMPTE internal hybrid distribution breakouts provide a streamlined solution for connecting to standard fibre optic connectors and 6-pin AMP power connectors. Engineered for easy integration into rack panels, splice trays, adapters, and wall boxes, these assemblies simplify installation while maintaining exceptional reliability.

The FXW and FMW series feature two single-mode fibres, two 22 AWG wires, and two 18 AWG tinned-copper conductors housed within a flexible PVC jacket and protected by a rugged braided sleeve. Designed to combine power, control, and fibre in a single assembly, they deliver robust performance for professional video and audio transmission. Fully compliant with ARIB and SMPTE standards.

Assemblies are available in both plug and receptacle configurations, with ST, LC, or SC fibre connectors, and offered in a range of standard lengths.

HF-FUW & HF-FMW LEMO fibre camera cable assemblies comply with 304M & 311M SMPTE standards. With LEMO connectors for strong signals in tough broadcast settings, these cables include power, control, and fibre optic lines for video and audio. Assemblies are machine-polished, tested for <.55dB return loss, and can be custom ordered in any length or configuration.

Fibre Systems offers pre-terminated opticalCON DUO SMPTE chassis assemblies featuring copper wires connected to our standard BP3 style 6-pin AMP connector for straightforward plug-and-play installation. These solutions enable efficient breakout of opticalCON SMPTE power conductors to 6-pin AMP connectors, facilitating streamlined and space-saving installations.  Other connector options are available on request.

Rackmount 2RU sliding enclosure SC Panels, Splice Configuration

Pigtail SC 2M SM 657.A1 900um 12 colour LSZH - Low Loss

Patch Cord LC-SC Duplex OS2 LSZH 10m - Low loss - Available in Black, Red, Blue and Salmon Pink

GX design allows for indoor/outdoor installations using a single cable type. Supports multiple routing of multifibre sub-cables, with connectors terminating directly to the fibre.

Rackmount 3RU sliding enclosure SC Panels, Patch Configuration

Patch Cord LC/APC-SC/APC Duplex OS2 LSZH 2mm Sheath Low Loss 0.5m

Fibre Systems Reference Grade Test Lead Sets provide a reliable, high-performance solution for optical link testing. Compliant with AU/NZ standards, they support common singlemode and multimode configurations and are available in simplex and duplex for uni - or bi-directional testing with any compatible test equipment.

Cinch Fibreco Free Plug/Cable Mount Series 4 CH Fibre Optic Connector, 9/125, 1310/1550mm, MIL-TAC 5.5mm, Black Hard Anodised Aluminium Shell

The MARS® T Frame Disassembles into five parts for convenient shipping and storage, and has a built-in brake that adjusts the reel drag to prevent overspin.

The rear compatibility of opticalCON MTP^® 24 chassis fitting with standard MTP^® 24 (ELITE male with 20 N springforce) breakout cable allows easy adaptation to fibre standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance

MTP®/MPO Fibre Optic Cleaners remove dust, debris, and contaminants from connector endfaces to maintain connectivity. Suitable for singlemode and multimode ferrules, these cleaners are RoHS compliant.

LEMO F2 fibre optic contacts are specialised, high performance, Singlemode or Multimode fibre contacts commonly used in #K.93C SMPTE Broadcast applications, 0K-5K and 2B-5B series connectors. They are designed for quick field repairs without epoxy or polishing, ensuring reliable, rapid, on-site termination.

Fibre Systems management guides are designed to route and protect the bending radius of the patch cords.  This accessory can be retrofitted to any 1RU panel without removing the pre-installed racks.

AVP Maxxum ST Multimode Duplex, OM1/2/3/4 (Metallic) Fibre Optic Panel Mount Feed-thru. Adapter Plate(s) and/or Hardware. Includes MIS Colour-Code Caps; Black, Beige, Aqua & Magenta

AVP Maxxum ST Singlemode Duplex (Metallic) Fibre Optic Panel Mount Feed-thru, Adapter Plate(s) and/or Hardware. Black, Blue and Green MIS Colour-Code Cap included

AVP Maxxum LC Singlemode Duplex Blue, Fibre Optic Panel Mount Feed-thru, Blue, SC Footprint, Adapter Plate(s) and/or Hardware, Black and Blue MIS Colour-Code Caps included.

Fibre Systems combines MIL-DTL-38999 Connectors, M29504/4 Pins and M29504/5 Sockets to offer military-grade solutions for fixed network, multi-channel fibre optic connectivity.

Patch Cord LC/APC-LC/APC High Density reversible Uni-tab OS2 LSZH lead 01M - 2mm Yellow Low Loss

Engineered for high-definition cameras with multiplexed audio and video transmission. Assemblies come with pre-terminated SMPTE connectors sourced from leading manufacturers.

D-Series 6F SM Ultra-Fox Plus™ Outdoor Military Tactical Bk
